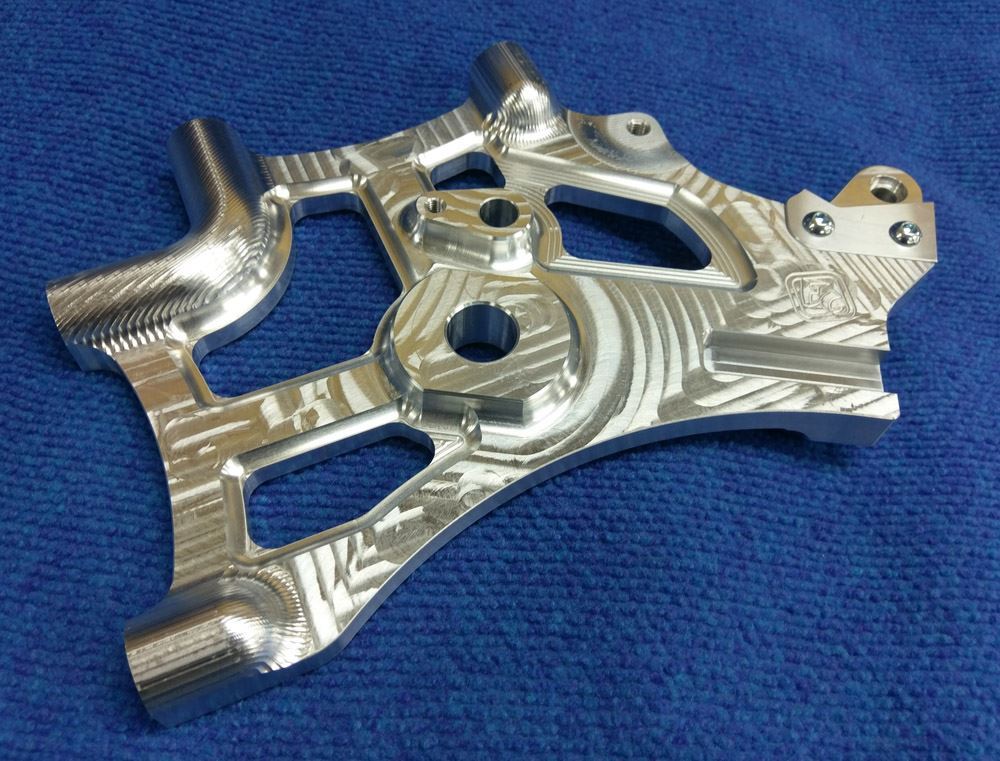

*New 2017 model* MT-09 (FZ-09) Rear multi caliper bracket for oversize disc

Multi caliper MT-09 MT-07 FZ-09 FZ-07 rear brake bracket that suits a 298mm (MT-09 Front) disc rotor, Accepts the factory rear brake caliper + Twin 4 piston radial calipers.
Manufacturer: Extreme Creations
*
*
$328.77
$290.78

This is our latest design of multi caliper brake bracket for the Yamaha MT-09 & MT-07 models.

This bracket holds  the factory single piston floating caliper as well as 2 x 4 piston radial calipers (108mm)

Its designed to be used with an MT-09 298mm front disc rotor which mounts directly to the rear wheel using the same bolt pattern, giving you the ultimate in stunt braking.

Ideally suited to the MT-09 front calipers although it will accept any 108mm Radial calipers

**Note: Brake calipers & disc rotor not included.**

When ordering we've included the option for a 2 or 3 brakeline kit, the 2 line kit includes a long line that runs to a front master cylinder & a short link line that runs between the 4 piston calipers, The 3 line kit also includes a replacement factory rear line. Other lines & colours are avaliable on the Hel brakeline page of our store.

* NOW AVAILABLE FOR 2017 MODEL*

Includes position for ABS wheel sensor.

Also now available in optional Anodised black finish, may require additional production time.



This is our latest design of multi caliper brake bracket for the Yamaha MT-09 & MT-07 models.

This bracket holds  the factory single piston floating caliper as well as 2 x 4 piston radial calipers (108mm)

Its designed to be used with an MT-09 298mm front disc rotor which mounts directly to the rear wheel using the same bolt pattern, giving you the ultimate in stunt braking.

Ideally suited to the MT-09 front calipers although it will accept any 108mm Radial calipers

**Note: Brake calipers & disc rotor not included.**

When ordering we've included the option for a 2 or 3 brakeline kit, the 2 line kit includes a long line that runs to a front master cylinder & a short link line that runs between the 4 piston calipers, The 3 line kit also includes a replacement factory rear line. Other lines & colours are avaliable on the Hel brakeline page of our store.

* NOW AVAILABLE FOR 2017 MODEL*

Includes position for ABS wheel sensor.

Also now available in optional Anodised black finish, may require additional production time.
